Description :

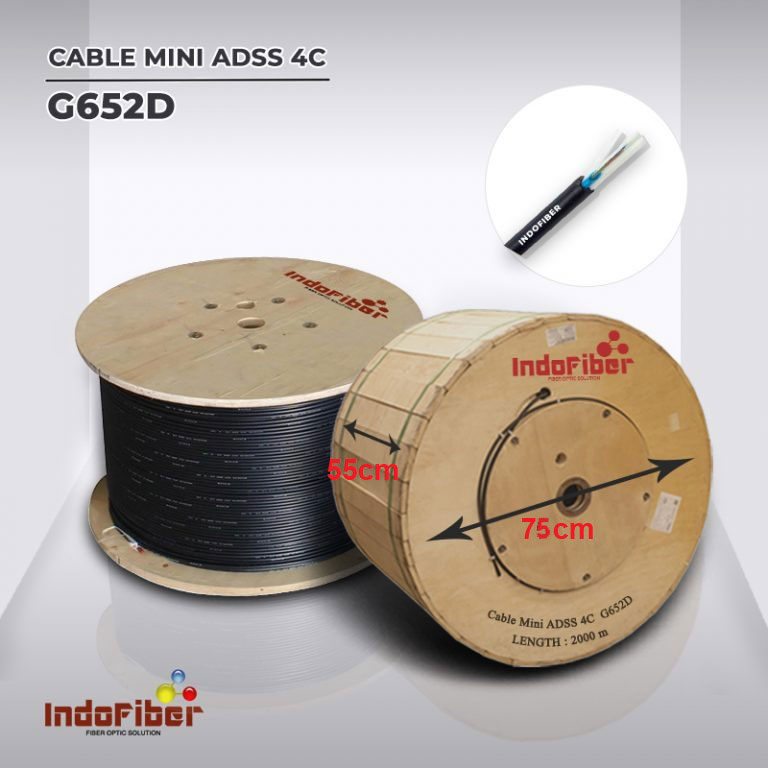

Flat construction containing a G.652D optical fiber path guarantees high product performance and ease of installation reliability of the network plus the low cost of installation and maintenance. It is composed of an SM fiber optic at the core of the cable, protected by a loose tube and two elements, facilitate the anchoring and suspension of the cable.
Application :
Adopted to Outdoor distribution Suitable for aerial,duct and Long distance and local area network communication
Can be installed conveniently and operated simply
| No. of cable | 2~12 | 24 | 24 | 48 | |
| Span | 100 M | ||||
| Fiber Model | G.652D | ||||
| Loose Tube | |||||
| Material | PBT | ||||
| Diameter | 2.0±0.1 mm | 2.8±0.1 mm | |||
| Thickness | 0.30±0.05 mm | 0.40±0.05 mm | |||
| Colour | Nature | Blue Orange | Nature | Blue Orange | |
| Strength Member | |||||
| Material | PBT | ||||
| Diameter | 1.8±0.05 mm | 2.0±0.05 mm | |||
| Outer Sheath | |||||
| Material | PE | ||||
| Color | Black | ||||
| Water Blocking | Material | Water Blocking Yarn | |||
| Ripcord | |||||
| Material | Nylon | ||||
| No. | 1 | ||||
| Cable Diameter | 6.8±0.4 mm | 7.5±0.4 mm | 7.8±0.4 | 9.0±0.4 | |
| Cable Weight | 40±5.0 | 48±5.0 | 51±5.0 | 68±5.0 | |
| Allowable Tensile Strength | 2400N | 2800N | |||
| Allowable Crush Resistance | 2000N/100mm | ||||
| Allowable Crush Resistance | 2000N/100mm | ||||
| Min. bending radius | |||||
| Without Tension | 10.0×Cable-φ | ||||
| Under Tension | 20.0×Cable-φ | ||||
| Temperature range | |||||
| Installation | -20~+60 ℃ | ||||
| Transport & Storage | -40~+70 ℃ | ||||
| Operation | -40~+70 ℃ | ||||
